Technology is

Equipped for your project

Fabrication Equipment Highlights


JMI Blackening System

Exclusive to JMI is a unique blackening process that can apply patinas to steel, stainless, and bronze that darkens the appearence of the raw materials. These patinas provide a rustic look that is transparent allowing the natural character of the metals to still be present. Many of the commonly used patina products on the market are not enviromentally friendly but JMI's blackening process is completely enviromentally responsible with no byproducts that enter our communities wastewater systems.


Sheet Metal Bending

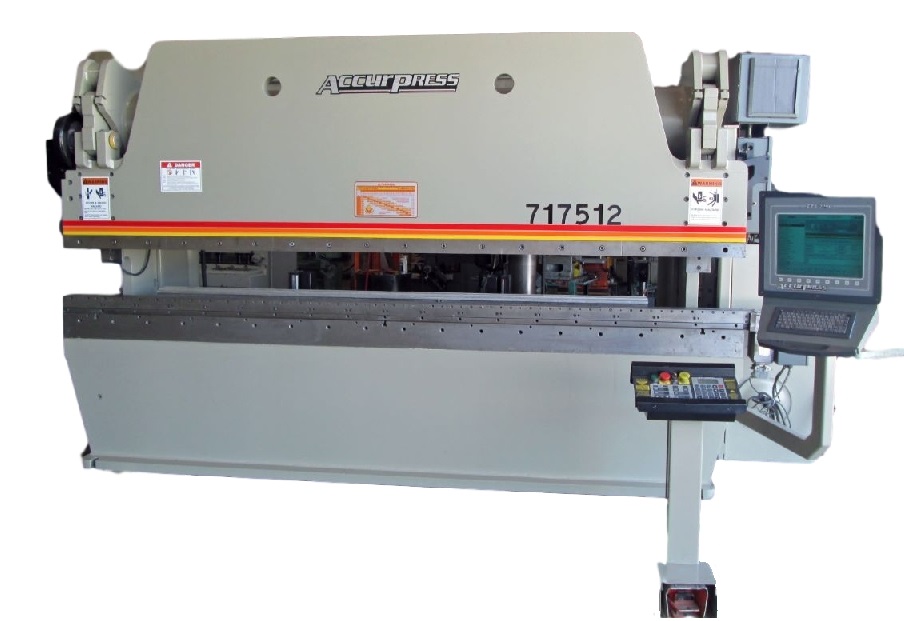

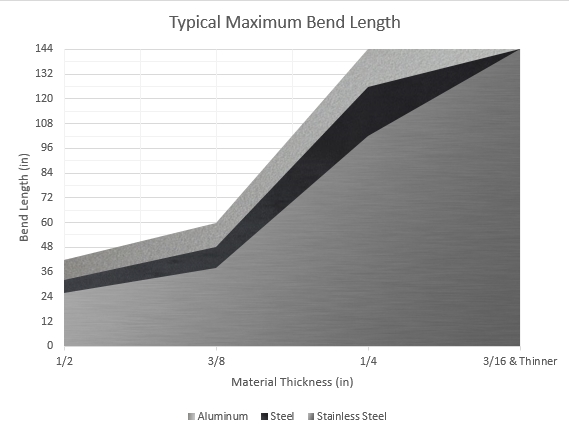

AccuPress Sheet Metal Brake, 175 Ton Capacity, Max Material Length 120", Max Opening 10", Max Speed 180 in/min, Motor 20 HP, Weight 24,000lbs


Steel, Stainless Steel, & Aluminum Cutting

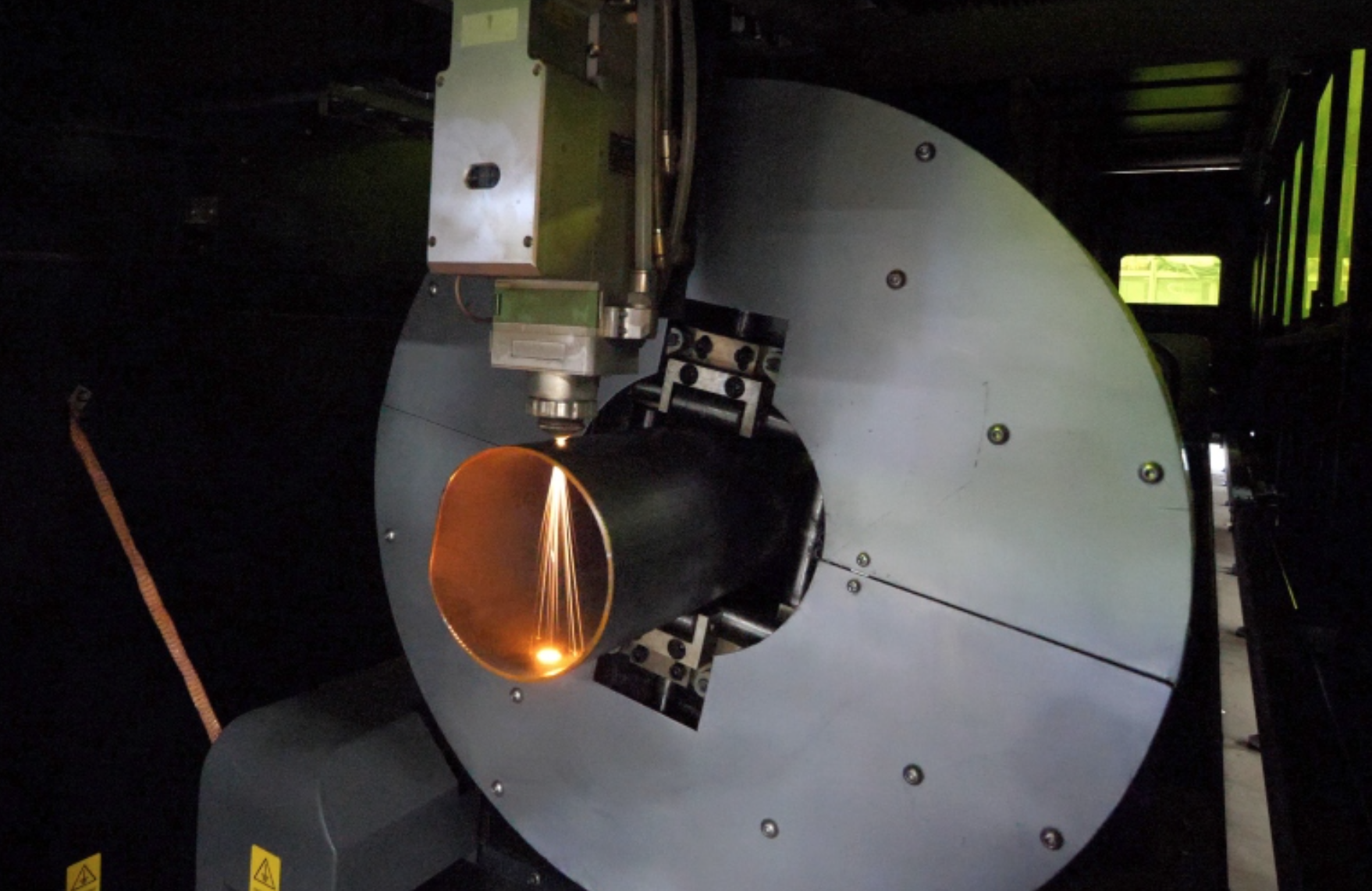

SmartShop® Laser|DLP, 5' x 12' Shuttle Table, 4000w Fiber Laser, 8" diameter x 20' tube cutting, Max Thickness (mild steel) 3/4", Max Thickness (stainless steel) 3/8", Max Thickness (aluminum) 3/8", Max Cutting Speed (mild steel) 250 in/min

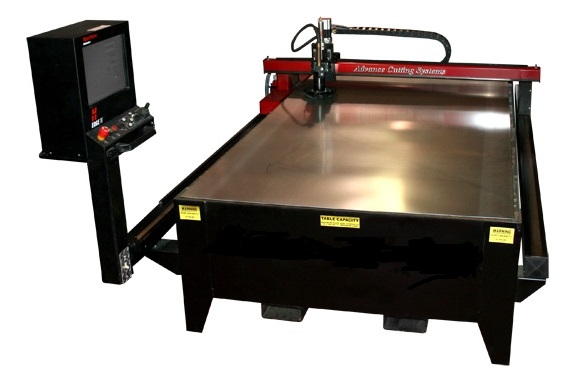

High Def CNC Plasma Table, 6' x 12' Table, Position Accuracy +/-0.012", Max Speed 1,400 in/min, Plasma Cutter HyperTherm HPR130XD, Max Thickness (mild steel) 1-1/2", Max Thickness (stainless steel) 1", Max Thickness (aluminum) 1", Max Cutting Speed (mild steel) 80 in/min


Finishing

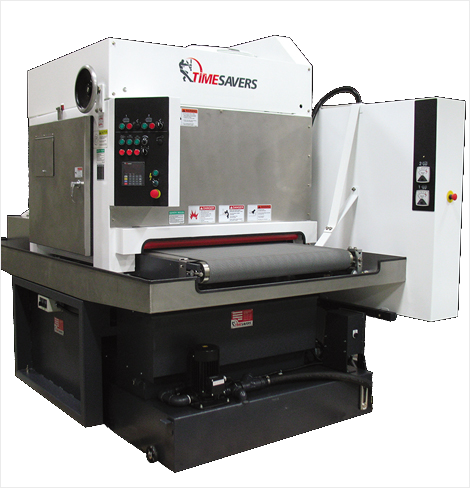

Timesavers Model Series 3100 37", Dual Head Wet Type Sander, Replicates #4 finish, Maximum part width 37", Minimum part length 8", Feed Speed 15 - 45 FPM


Shape Rolling

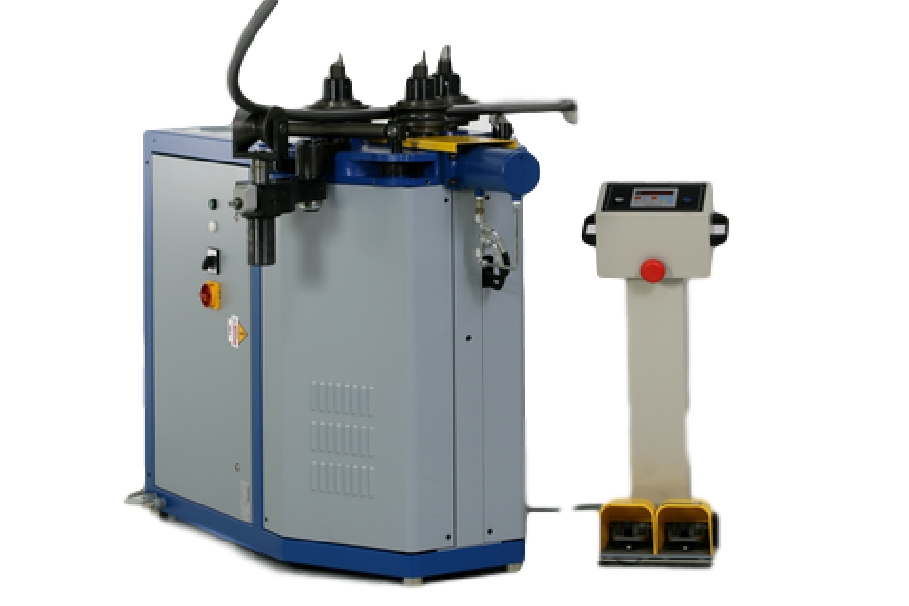

Taurin Group DS-60, Large Diameter Rolling, 5.5hp, Weight 1100lbs, Example Capabilities: Angle 2"x2"x3/8" Min Rad 20". Tube 2-1/2"x0.080" Min Rad 36". Sq Tube 3"x2"x0.120" Min Rad 24".


Sheet Rolling

Up to 5' width. Up to 1/4" material thickness. 6" Min Diameter


Tubing Notching and Rolling

Max Tubing Capacity 1-1/2" (1.9") x0.145" Pipe or 2"x0.120" Tubing


Hole Punching

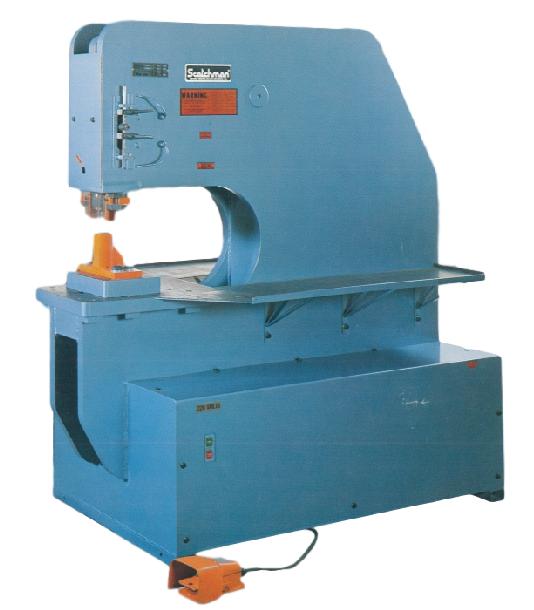

Scotchman Hyd Punch, Throat 24", 50 Ton Capacity, 13/16" in 3/4" Material, 1" in 5/8" Material, 3" in 3/16" Material, Up to 50 Strokes per Minute, Weight 5000lbs


Welding Equipment

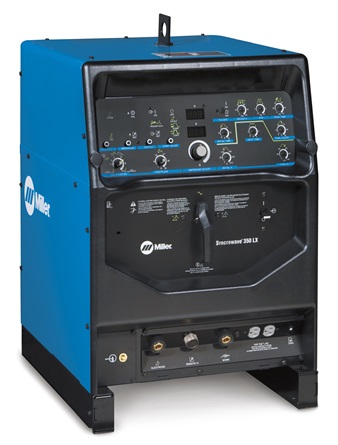

Miller Welders, Welding Capabilities of Steel-Aluminum-Stainless Steel, 0.012"-0.625"
